2SC2245 - NPN Transistor

Product Overview

📥 Download Datasheet

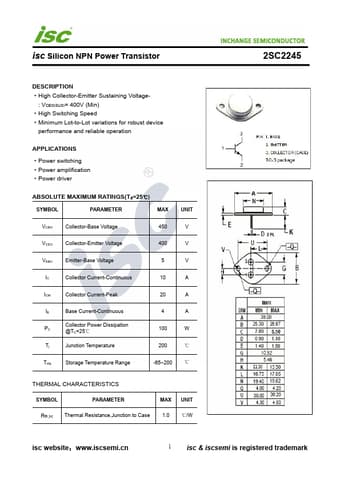

Datasheet preview – 2SC2245

Datasheet Details

Part number 2SC2245
Manufacturer INCHANGE
File Size 204.10 KB
Description NPN Transistor
Datasheet download datasheet 2SC2245 Datasheet
Additional preview pages of the 2SC2245 datasheet.

Product details

Description

High Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 400V (Min) High Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Power switching Power amplification Power driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current-Continuous ICM Collector Current-Peak 450 V 400 V 5
