2SC2243 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC2243

Datasheet Details

Part number 2SC2243
Manufacturer SavantIC
File Size 135.71 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2243 Datasheet
Additional preview pages of the 2SC2243 datasheet.

Product details

Description

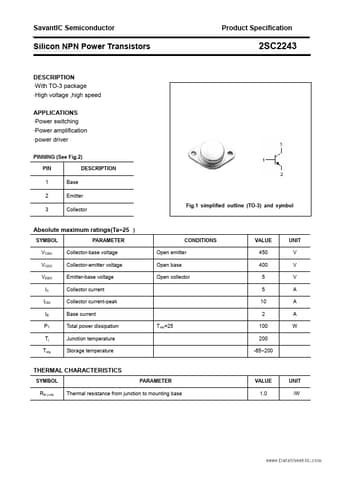

With TO-3 package High voltage ,high speed APPLICATIONS Power switching Power amplification power driver PINNING (See Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak Base current Total power dissipation Junction temperature Storag
