2SC2239 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC2239

Datasheet Details

Part number 2SC2239
Manufacturer SavantIC
File Size 143.82 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2239 Datasheet
Additional preview pages of the 2SC2239 datasheet.

Product details

Description

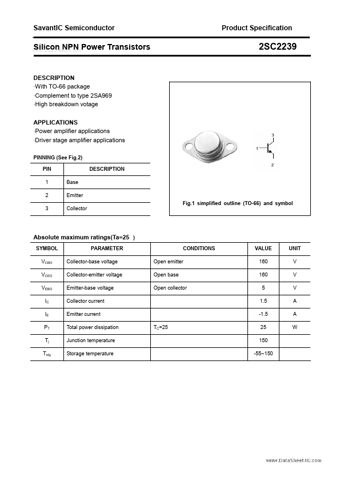

With TO-66 package Complement to type 2SA969 High breakdown votage APPLICATIONS Power amplifier applications Driver stage amplifier applications PINNING (See Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-66) and symbol DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IE PT Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Emitter current Total power dissipation Junction t
