2SC2238 - SILICON POWER TRANSISTOR

Product Overview

SavantIC

Datasheet Details

Part number	2SC2238
Manufacturer	SavantIC
File Size	122.80 KB
Description	SILICON POWER TRANSISTOR
Datasheet	2SC2238 Datasheet

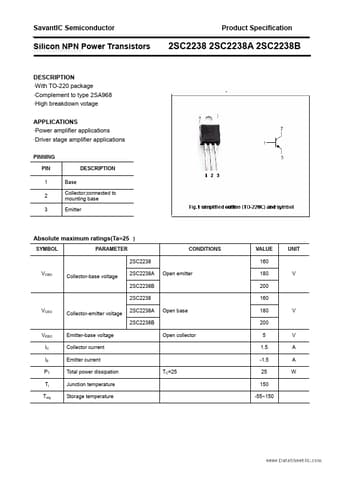

Additional preview pages of the 2SC2238 datasheet.

Product details

Description

With TO-220 package Complement to type 2SA968 High breakdown votage APPLICATIONS Power amplifier applications Driver stage amplifier applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SC2238 VCBO Collector-base voltage 2SC2238A 2SC2238B 2SC2238 VCEO Collector-emitter voltage 2SC2238A 2SC2238B VEBO IC IE PT Tj Tstg Emitter-base voltage Collector current Emitter current Total powe
