2SC2238A, 2SC2238 - Silicon NPN Transistor

2SC2238A Description

2SC2238 2SC2238A I2SC2238B SILICON NPN EPITAXIAL TYPE (PCT PROCESS) POWER AMPLIFIER APPLICATIONS.DRIVER STAGE AMPLIFIER APPLICATIONS..

2SC2238A Features

* High Transition Frequency : f^=100MHz (Typ. )
* Complementary to 2SA968, 2SA968A, and 2SA968B. 10.3MAX. Unit in mm 036 1.0.2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage 2SC2238 2SC2238A 2SC2238B Collector-Emitter 2SC2238 Voltage 2SC2238A 2SC2238B Emit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2SC2238A, 2SC2238. Please refer to the document for exact specifications by model.

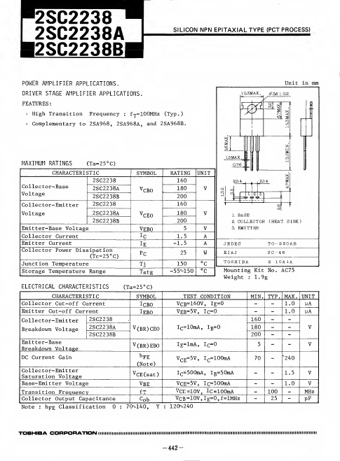

datasheet Preview Page 2

Datasheet Details

Part number
2SC2238A, 2SC2238
Manufacturer
Toshiba ↗
File Size
90.17 KB
Datasheet
2SC2238-Toshiba.pdf
Description
Silicon NPN Transistor
Note
This datasheet PDF includes multiple part numbers: 2SC2238A, 2SC2238.
Please refer to the document for exact specifications by model.
