2SC2246 - NPN Transistor

2SC2246 Description

isc Silicon NPN Power Transistor .
High Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 400V (Min). High Switching Speed. Minimum Lot-to-Lot variations for robust device.

2SC2246 Applications

* Power switching
* Power amplification
* Power driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current-Continuous IB Base Current-Continuous PC Collector Pow

📥 Download Datasheet

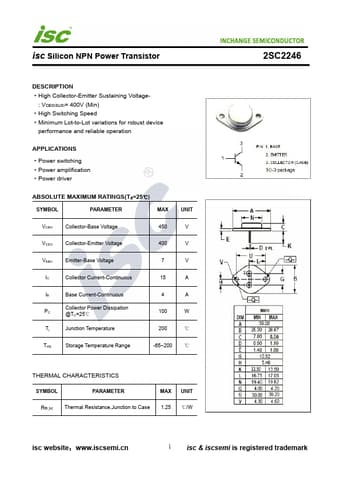

Preview of 2SC2246 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2246
Manufacturer
INCHANGE
File Size
183.15 KB
Datasheet
2SC2246-INCHANGE.pdf
Description
NPN Transistor
