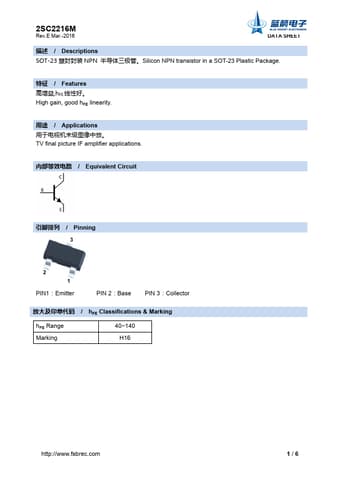

2SC2216M
Rev.E Mar.-2016
DATA SHEET
/ Descriptions
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.
/ Features
,hFE 。 High gain, good hFE linearity.
/ Applications
。 TV final picture IF amplifier applications.
/ Equivalent Circuit
/ Pinning
3
2 1
PIN1：Emitter
PIN 2：Base PIN 3：Collector
/ hFE Classifications & Marking
hFE Range Marking
40~140 H16
http://www.fsbrec.com
1/6
2SC2216M
Rev.E Mar.-2016
/ Absolute Maximum Ratings(Ta=25℃)
Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current Emitter Current Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol
VCBO VCEO VEBO
IC IE PC Tj Tstg
DATA SHEET
Rating
50 45 4.
