Part number:
2SC2240
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
738.44 KB
Description:
Silicon npn transistor.

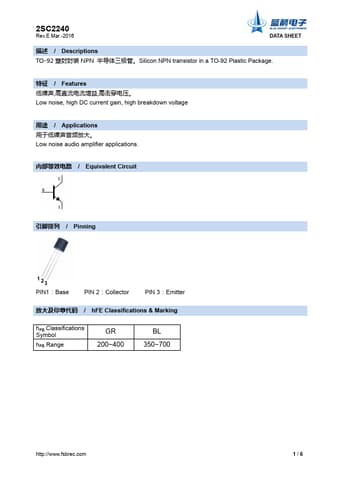

* ,,。 Low noise, high DC current gain, high breakdown voltage / Applications 。 Low noise audio amplifier applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range GR 200~400 BL 350~700
2SC2240
BLUE ROCKET ELECTRONICS
738.44 KB
Silicon npn transistor.
