Part number:
2SC2216
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
943.12 KB
Description:
Silicon npn transistor.

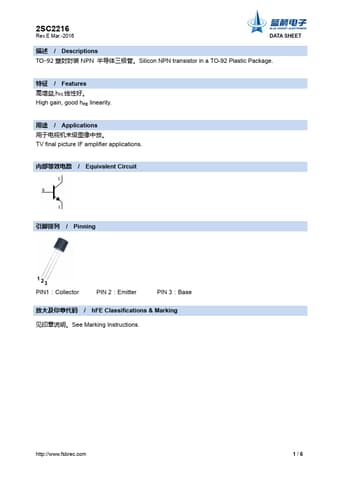

* ,hFE 。 High gain, good hFE linearity. / Applications 。 TV final picture IF amplifier applications. / Equivalent Circuit / Pinning 1 23 PIN1：Collector PIN 2：Emitter PIN 3：Base / hFE Classifications & Marking 。See Marking Instructions. http://www.fsbrec.com 1/6 2SC2216 Rev.E Mar.-2016
2SC2216
BLUE ROCKET ELECTRONICS
943.12 KB
Silicon npn transistor.
