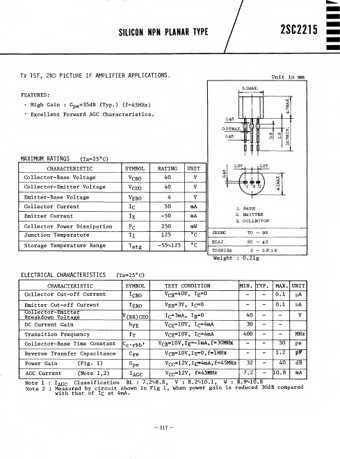

SILICON NPN PLANAR TYPE
TV 1ST, 2ND PICTURE IF AMPLIFIER APPLICATIONS. FEATURES
• High Gain : Gpe =35dB (Typ.) (f=45MHz) • Excellent Forward AGC Characteristics.
2SC2215
Unit in mm
MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current Collector Power Dissipation Junction Temperature Storage Temperature Range
SYMBOL VCBO v CEO vEBO ic IE
?C T
J
T stg
RATING 40
UNIT V
40
V
4
V
50
mA
-50
mA
250
mW
125
°C
-55^125 °C
1. BASS 2. EMITTER a COLLECTOR
TO 92
43
2 — 5P IE
Weight : 0.21g
ELECTRICAL CHARACTERISTICS (Ta=25°C)
CHARACTERISTIC Collector Cut-off Current
SYMBOL L CBO
TEST CONDITION VCB=40V, IE=0
MIN. TYP. MAX. UNIT 0.
