2SC2001 - NPN Plastic Encapsulated Transistor

2SC2001 Description

Elektronische Bauelemente 2SC2001 0.7 A , 30 V NPN Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-.

2SC2001 Features

* High hFE and low VCE(sat) hFE(IC=100mA)：200(Typ) VCE(sat)(700mA)：0.2V(Typ) CLASSIFICATION OF hFE Product-Rank 2SC2001-M Range 90~180 2SC2001-L 135~270 2SC2001-K 200~400 TO-92 GH J AD B K E CF Emitter Collector
* Base REF. A B C D E F G H J K Millimeter Min. Max. 4.40 4.70 4.

📥 Download Datasheet

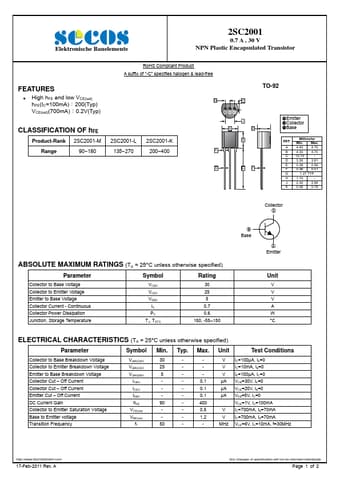

Preview of 2SC2001 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2001
Manufacturer
SeCoS
File Size
475.01 KB
Datasheet
2SC2001-SeCoS.pdf
Description
NPN Plastic Encapsulated Transistor
