2SC2120 - NPN Plastic Encapsulated Transistor

2SC2120 Description

Elektronische Bauelemente 2SC2120 0.8 A , 35 V NPN Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-.

2SC2120 Features

* High DC Current Gain Complementary to 2SA950 CLASSIFICATION OF hFE Product-Rank 2SC2120-O Range 100~200 2SC2120-Y 160~320 TO-92 GH J AD B K E CF 1Emitter 2Collector 3Base REF. A B C D E F G H J K Millimeter Min. Max. 4.40 4.70 4.30 4.70 12.70 - 3.30 3.81 0.36 0.56 0.36 0.51 1.27 TY

📥 Download Datasheet

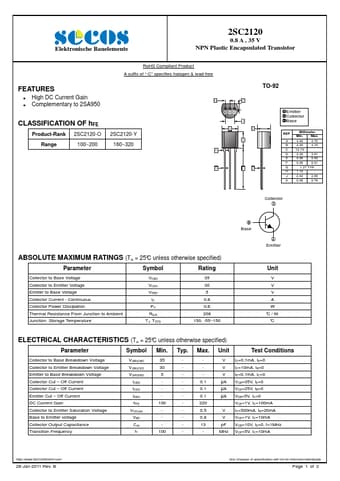

Preview of 2SC2120 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2120
Manufacturer
SeCoS
File Size
129.83 KB
Datasheet
2SC2120-SeCoS.pdf
Description
NPN Plastic Encapsulated Transistor
