2SC2105 - SILICON NPN TRANSISTOR

Product Overview

Toshiba

📥 Download Datasheet

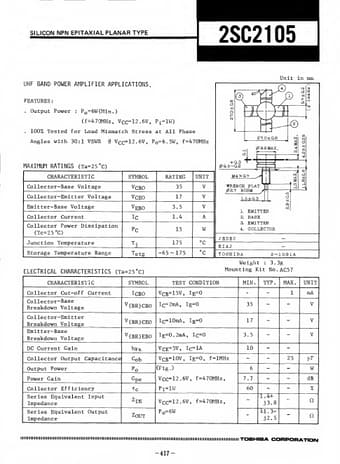

2SC2105 SILICON NPN TRANSISTOR by Toshiba - Datasheet Preview — Datasheet preview – 2SC2105

Datasheet Details

Part number	2SC2105
Manufacturer	Toshiba
File Size	63.64 KB
Description	SILICON NPN TRANSISTOR
Datasheet	2SC2105 Datasheet
Additional preview pages of the 2SC2105 datasheet.

Product details

Features

. Output Power : P =6W(Min. ) (f =4 70MHz, V C c=12.6V, P 1 =1W) . 100% Tested for Load Mismatch Stress at All Phase Angles with 30:1 VSWR @ V CC=12.6V, P =6.5W, f=470MHz Unit in nun.
