2SC2104 - Silicon NPN Transistor

Product Overview

Toshiba

📥 Download Datasheet

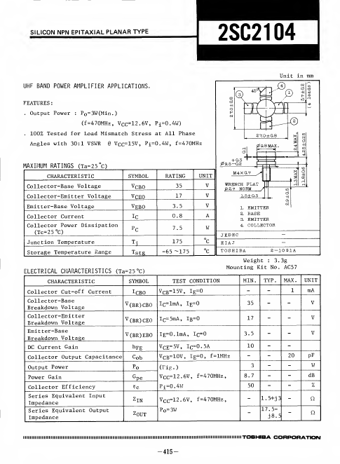

2SC2104 Silicon NPN Transistor by Toshiba - Datasheet Preview — Datasheet preview – 2SC2104

Datasheet Details

Part number	2SC2104
Manufacturer	Toshiba
File Size	62.69 KB
Description	Silicon NPN Transistor
Datasheet	2SC2104 Datasheet
Additional preview pages of the 2SC2104 datasheet.

Product details

Features

. Output Power : P G =3W(Min. ) (f=470MHz, V C c=12.6V, Pi=0.4W) . 100% Tested for Load Mismatch Stress at All Phase Angles with 30:1 VSWR @ V C C=15V, Pi= 0.4W, f=470MHz Unit in mm m%.
