2SC2106 - Silicon NPN Transistor

2SC2106 Description

: SILICON NPN EPITAXIAL PLANAR TYPE UHF BAND POWER AMPLIFIER APPLICATIONS..

2SC2106 Features

* . Output Power : P =12W(Min. ) (f=470MHz, VCC=12.6V, Pi=3W) . 100% Tested for Load Mismatch Stress at All Phase Angles with 30:1 VSWR @ vC c=15V, Pi= 3W, f=470MHz Unit in mm MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Curr

📥 Download Datasheet

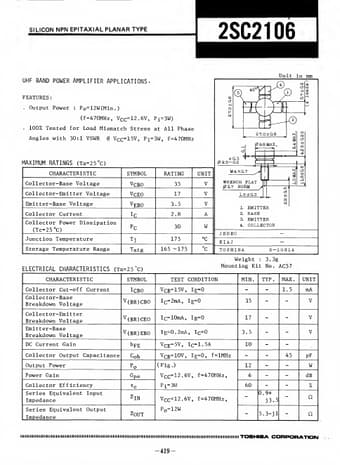

Preview of 2SC2106 PDF
datasheet Preview Page 2
