2SC2120 - TRANSISTOR

2SC2120 Description

1112SC2120 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT process) 2SC2120 Audio Power Amplifier Applications Unit: mm * High hFE: hFE .

2SC2120 Applications

* Unit: mm
* High hFE: hFE (1) = 100~320
* 1 watts amplifier applications.
* Complementary to 2SA950 Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation

📥 Download Datasheet

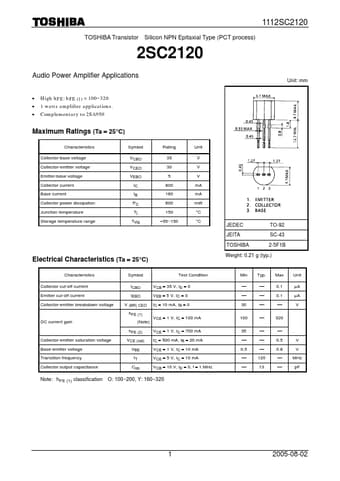

Preview of 2SC2120 PDF
datasheet Preview Page 2 datasheet Preview Page 3
