2SC2123 - NPN Transistor

2SC2123 Description

isc Silicon NPN Power Transistor .
High Collector-Base Breakdown Voltage- : V(BR)CBO= 1000V (Min). High Current Capability. High Switching Speed. Minimum Lot-to-Lot var.

2SC2123 Applications

* Designed for TV horizontal output and high power switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 1000 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 8 V IC Collector Current-Continuous 12 A IC

📥 Download Datasheet

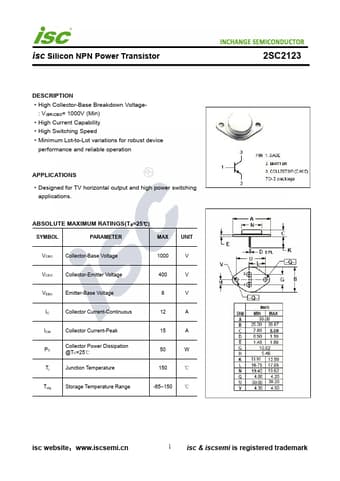

Preview of 2SC2123 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2123
Manufacturer
INCHANGE
File Size
204.53 KB
Datasheet
2SC2123-INCHANGE.pdf
Description
NPN Transistor
