2SC2166 - NPN Transistor

Product Overview

📥 Download Datasheet

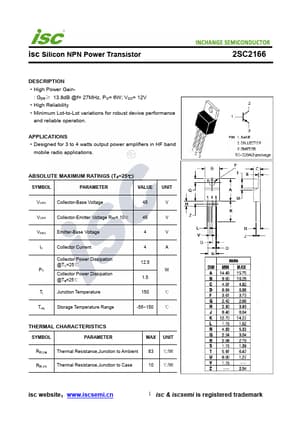

Datasheet preview – 2SC2166

Datasheet Details

Part number 2SC2166
Manufacturer INCHANGE
File Size 181.81 KB
Description NPN Transistor
Datasheet download datasheet 2SC2166 Datasheet
Additional preview pages of the 2SC2166 datasheet.

Product details

Description

High Power Gain- : Gpe≥ 13.8dB @f= 27MHz, PO= 6W; VCC= 12V High Reliability Minimum Lot-to-Lot variations for robust device performance and reliable operation.APPLICATIONS Designed for 3 to 4 watts output power amplifiers in HF band mobile radio applications.ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 45 V VCER Collector-Emitter Voltage RBE= 10Ω 45 V VEBO Emitter-Base Voltage 4 V IC Collector Current Collecto
