2SC2120 - Silicon NPN Transistor

2SC2120 Description

isc Silicon NPN Transistor .
High hFE(1)=100-320. 1 Watts Amplifier Applications. Complement to Type 2SA950. Minimum Lot-to-Lot variations for robust device perfo.

2SC2120 Applications

* Complement to Type 2SA950
* Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
* Audio power amplifier Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-

📥 Download Datasheet

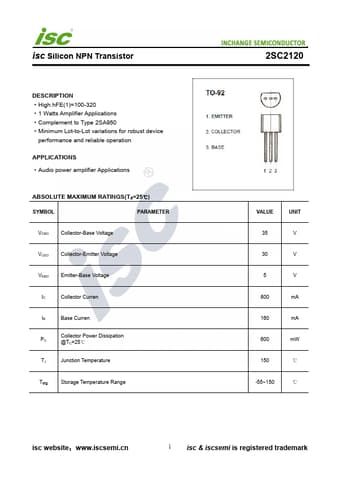

Preview of 2SC2120 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2120
Manufacturer
INCHANGE
File Size
190.74 KB
Datasheet
2SC2120-INCHANGE.pdf
Description
Silicon NPN Transistor
