2SC2122

NPN Transistor

2SC2122 General Description


*With TO-3 Package
*Low collector saturation voltage
*Minimum Lot-to-Lot variations for robust device performance and reliable operation. APPLICATIONS
*Designed for color TV horizontal deflection driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collect.

2SC2122 Datasheet (173.00 KB)

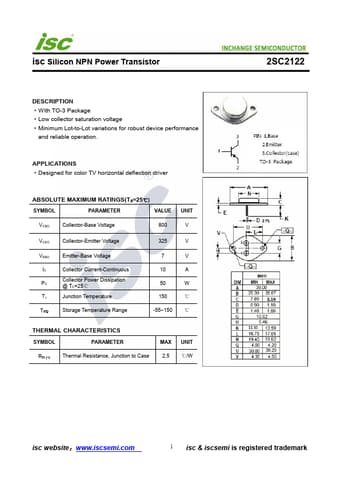

Preview of 2SC2122 PDF

Datasheet Details

Part number:

2SC2122

Manufacturer:

INCHANGE

File Size:

173.00 KB

Description:

Npn transistor.
