Part number:
2SC2101
Manufacturer:
File Size:
61.72 KB
Description:
Silicon npn power transistor.

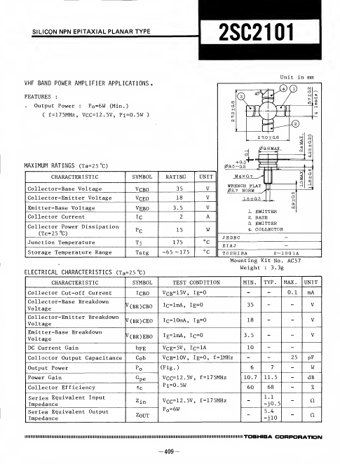

* : . Output Power : P =6W (Min.) ( f=175MHz, VCC=12.5V, Pi=0.5W ) Unit in mm MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation (Tc=25°C) Junction Temperature Storage Temp
2SC2101
61.72 KB
Silicon npn power transistor.
