2SC2103A - SILICON NPN TRANSISTOR

2SC2103A Description

SILICON NPN EPITAXIAL PLANAR TYPE VHF BAND POWER AMPLIFIER APPLICATIONS..

2SC2103A Features

* : . Output Power : P =27W (Min. ) (f=175MHz, VC C=12.5V, Pi=4.2W ) 100% Tested for Load Mismatch Stress at All Phase Angles with 30:1 VSWR @ Vcc=14.5V, Pi=4W, f=175MHz Unit in mm MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL RATING UNIT Collector-Base Voltage 'CBO 40 Collector-Emitter Volt

📥 Download Datasheet

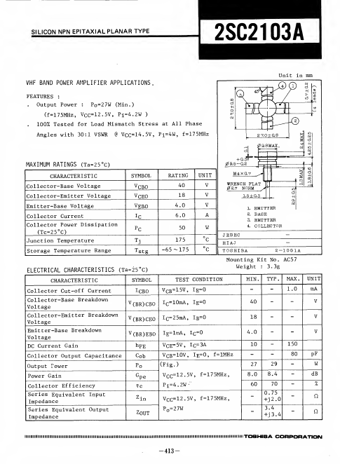

Preview of 2SC2103A PDF
datasheet Preview Page 2
