2SC2274 - NPN Plastic Encapsulated Transistor

2SC2274 Description

Elektronische Bauelemente 2SC2274 0.5 A , 60 V NPN Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-.

2SC2274 Features

* High Breakdown Voltage
* High Current
* Low Saturation Voltage CLASSIFICATION OF hFE(1) Product-Rank 2SC2274-D 2SC2274-E Range 60~120 100~200 2SC2274-F 160~320 TO-92 GH J AD B K E CF Emitter Collector
* Base REF. A B C D E F G H J K Millimeter Min. Max. 4.40 4.70 4.30

📥 Download Datasheet

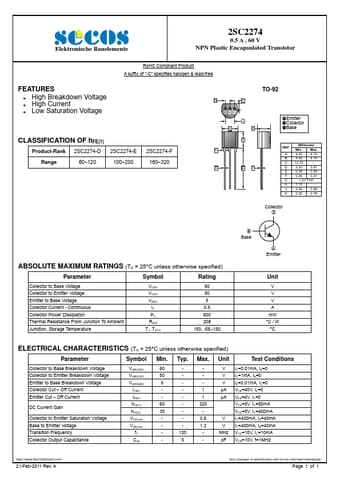

Preview of 2SC2274 PDF

Datasheet Details

Part number
2SC2274
Manufacturer
SeCoS
File Size
79.29 KB
Datasheet
2SC2274-SeCoS.pdf
Description
NPN Plastic Encapsulated Transistor
