2SC2275A - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC2275A

Datasheet Details

Part number 2SC2275A
Manufacturer SavantIC
File Size 122.15 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2275A Datasheet
Note This datasheet PDF includes multiple part numbers: 2SC2275A, 2SC2275.
Please refer to the document for exact specifications by model.

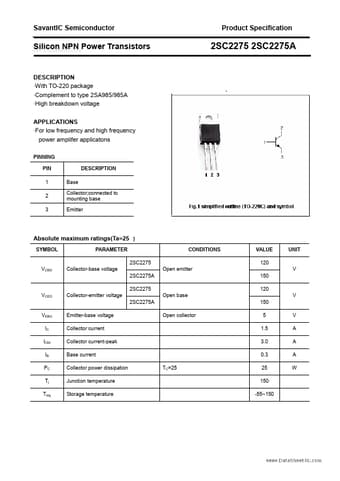

Additional preview pages of the 2SC2275A datasheet.

Product details

Description

With TO-220 package Complement to type 2SA985/985A High breakdown voltage APPLICATIONS For low frequency and high frequency power amplifer applicatons PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER 2SC2275 VCBO Collector-base voltage 2SC2275A 2SC2275 VCEO Collector-emitter voltage 2SC2275A VEBO IC ICM IB PC Tj Tstg Emitter-base voltage Collector current Collector current-peak Base current Coll
