2SC2275, Silicon NPN transistor

2SC2275(A) Rev.F Mar.-2016 DATA SHEET / .
TO-220F NPN 。Silicon NPN transistor in a TO-220F Plastic Package.

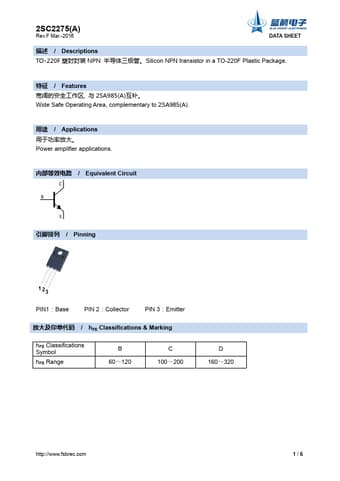

datasheet Preview Page 1 from Datasheet4u.com

2SC2275-BLUEROCKETELECTRONICS.pdf

2SC2275 Datasheet Preview — Preview of 2SC2275 PDF

Datasheet Details

Part number:

2SC2275

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

904.99 KB

Description:

Silicon NPN transistor

Applications

* 。 Power amplifier applications. / Equivalent Circuit / Pinning 1 23 PIN1：Base PIN 2：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range B 60～120 C 100～200 D 160～320 http://www. fsbrec. com 1/6 2SC2275(A) Rev. F Mar. -2016 / Absolute Maximum Ra
