2SC2270 - Silicon NPN Transistor

Product Overview

Toshiba

📥 Download Datasheet

2SC2270 Silicon NPN Transistor by Toshiba - Datasheet Preview — Datasheet preview – 2SC2270

Datasheet Details

Part number	2SC2270
Manufacturer	Toshiba
File Size	87.95 KB
Description	Silicon NPN Transistor
Datasheet	2SC2270 Datasheet

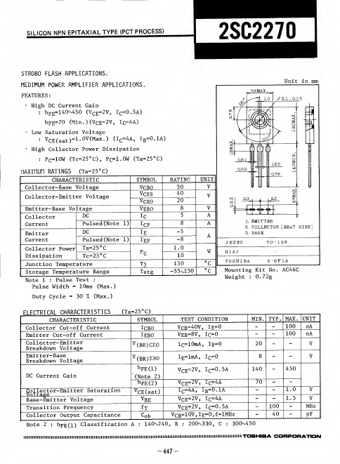

Additional preview pages of the 2SC2270 datasheet.

Product details

Features

High DC Current Gain : hFE=140^450 (V CE=2V, I C=0.5A) hFE=70 (Min. )(VCE=2V, I C=4A).
Low Saturation Voltage : v CE(sat) =1 - 0V (Max -) (Ic=4A » Ib =0 - 1A ).
High Collector Power Dissipation : P C=10W (Tc=25°C), Pc-l. OW (Ta=25°C).
