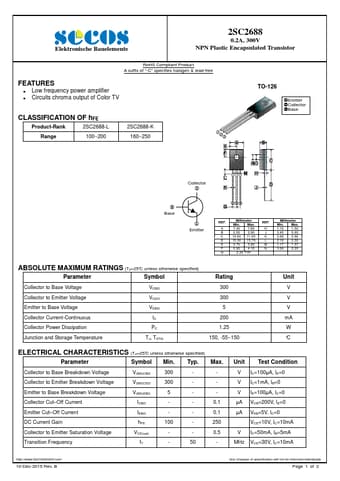

* Low frequency power amplifier Circuits chroma output of Color TV CLASSIFICATION OF hFE Product-Rank 2SC2688-L Range 100~200 2SC2688-K 160~250 TO-126 1Emitter 2Collector 3Base Collector 2 3 Base 1 Emitter REF. A B C D E F G Millimeter Min. Max. 7.40 7.80 2.50 2.90 10.60 11.00 15.30 15.70
2SC2688
SeCoS
305.85 KB
Npn transistor.
Elektronische Bauelemente
2SC2688
0.2A, 300V NPN Plastic Encapsulated Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen & lead-fr.
