2SC2681 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

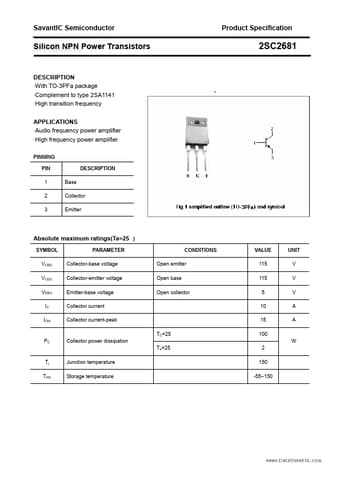

Datasheet preview – 2SC2681

Datasheet Details

Part number 2SC2681
Manufacturer SavantIC
File Size 148.96 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC2681 Datasheet
Additional preview pages of the 2SC2681 datasheet.

Product details

Description

With TO-3PFa package Complement to type 2SA1141 High transition frequency APPLICATIONS Audio frequency power amplifier High frequency power amplifier PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak TC=25 PC Collector power dissipation Ta=25 Tj Tstg Junction temperature Storage temperat
