2SC2650 - Silicon NPN Transistor

2SC2650 Description

2SC2650 SILICON NPN TRIPLE DIFFUSED TYPE SWITCHING REGULATOR AND HIGH VOLTAGE SWITCHING APPLICATIONS.HIGH SPEED DC-DC CONVERTER APPLICATIONS.FEAT.

2SC2650 Features

* Excellent Switching Tims t r =1.0ys Max. , t f =1.0ys Max. (IC=5A)
* High Collector Breakdown Voltage VCEO=400V MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation

📥 Download Datasheet

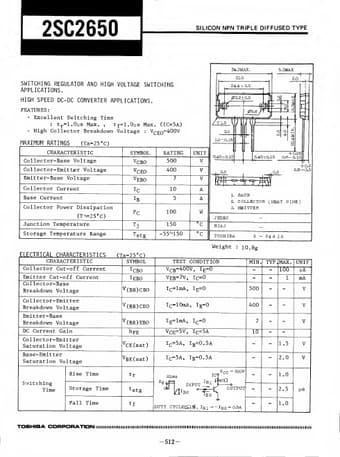

Preview of 2SC2650 PDF
datasheet Preview Page 2 datasheet Preview Page 3
