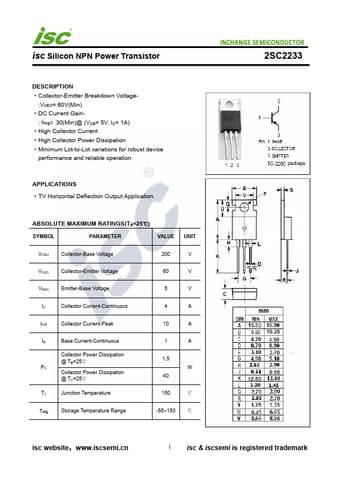

2SC2233 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

2SC2233

Manufacturer:

Inchange Semiconductor

File Size:

191.44kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

Collector-Emitter Breakdown Voltage- :VCEO= 60V(Min)

DC Current Gain- : hFE= 30(Min)@ (VCE= 5V, IC= 1A)

Hi

2SC2233 Application

• Applications
• TV Horizontal Deflection Output Application ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-
