2SC2314 - Silicon NPN Power Transistor

2SC2314 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Voltage- :VCER= 75V(Min) ;RBE=150Ω. Collector Current- :IC=1. Low Saturation Voltage : VCE(sat)=0.

2SC2314 Applications

* Power Amplifier Applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 75 V VCER Collector-Emitter Voltage RBE=150Ω 75 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous PC Collector Power Dissipation @ Ta=25℃ TJ

📥 Download Datasheet

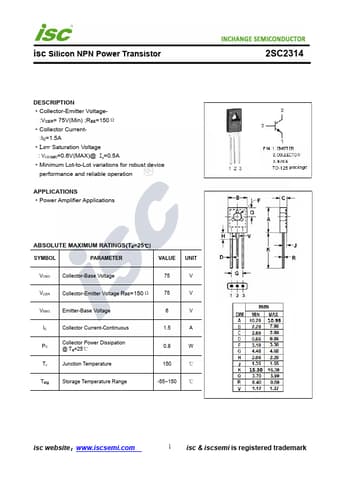

Preview of 2SC2314 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2314
Manufacturer
Inchange Semiconductor
File Size
194.65 KB
Datasheet
2SC2314-InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistor
