2SC2316 - NPN Transistor

Datasheet Summary

Description

Collector-Emitter Breakdown Voltage- :V(BR)CEO= 80(V)(Min.) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Series regulator,switch and general purpose applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL P

📥 Download Datasheet

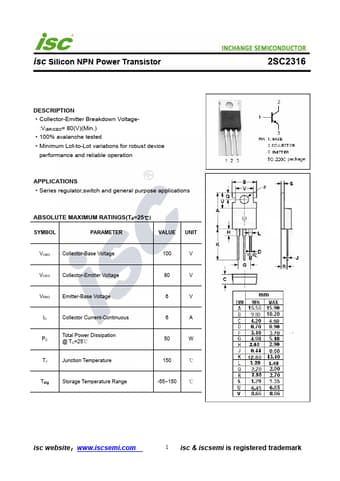

Datasheet preview – 2SC2316

Datasheet Details

Part number 2SC2316
Manufacturer INCHANGE
File Size 181.04 KB
Description NPN Transistor
Datasheet download datasheet 2SC2316 Datasheet
