2SC2309 Silicon NPN Transistor

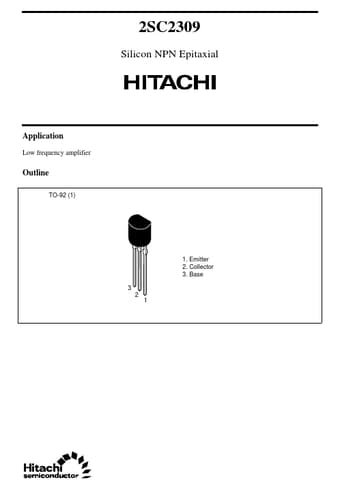

2SC2309 Silicon NPN Epitaxial Application Low frequency amplifier Outline TO-92 (1) 1. Emitter 2. Collector 3. Base 3 2 1 2SC2309 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Ratings 55 50 5 100 200 150 55 to +150 Unit V V V mA mW °C °C Electrical Characteristics (Ta = 25°C) Item Collec.
