2SC2324 Datasheet - Hitachi Semiconductor

2SC2324 Silicon NPN Transistor

2SC2324(K) Silicon NPN Epitaxial Application Low frequency power amplifier Outline TO-126 MOD 2 3 1. Emitter 2. Collector 3. Base 1 2 3 1 Absolute Maximum Ratings (Ta = 25°C) Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Symbol VCBO VCEO VEBO IC I C(peak) PC PC Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Tj Tstg 1 Ratings 60 60 7 1 2 0.8 8 150 <.

2SC2324 Datasheet (33.22 KB)

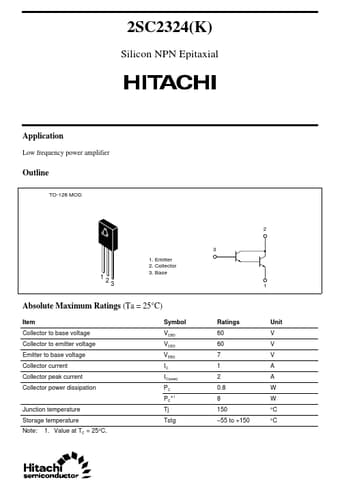

Preview of 2SC2324 PDF
2SC2324 Datasheet Preview Page 2 2SC2324 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC2324

Manufacturer:

Hitachi Semiconductor

File Size:

33.22 KB

Description:

Silicon npn transistor.
