2SC2328A

NPN EPITAXIAL SILICON TRANSISTOR

2SC2328A Features

* Collector Dissipation Pc=1 W

* 3 W Output Application

* Complement of 2SA928A

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free Package 2SC2328AL-x-T92-B 2SC2328AG-x-T92-B TO-92 2SC2328AL-x-T92-K 2SC2328AG-x-T92-K TO-92 2SC2328AL-x-T9N-K 2SC2328AG-x-T9N-K

2SC2328A General Description

, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 3 QW-R211-008.F .

2SC2328A Datasheet (178.61 KB)

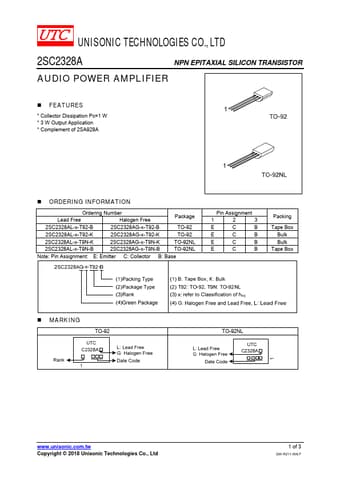

Preview of 2SC2328A PDF

Datasheet Details

Part number:

2SC2328A

Manufacturer:

Unisonic Technologies

File Size:

178.61 KB

Description:

Npn epitaxial silicon transistor.
