2SC2304 - NPN Transistor

Datasheet Summary

Description

With TO-3 Package Low collector saturation voltage

and reliable operation.

Designed for color TV horizontal deflection driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collect

📥 Download Datasheet

Datasheet preview – 2SC2304

Datasheet Details

Part number 2SC2304
Manufacturer INCHANGE
File Size 174.36 KB
Description NPN Transistor
Datasheet download datasheet 2SC2304 Datasheet
Additional preview pages of the 2SC2304 datasheet.

📁 Similar Datasheet

  • 2SC2304 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2305 - Silicon NPN Power Transistors (Philips)
  • 2SC2305 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2307 - Silicon NPN Transistor (Sanken Electric)
  • 2SC2307 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC2308 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC2308 - Silicon NPN Transistor (Renesas)
  • 2SC2309 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC2310 - Silicon NPN Transistor (Hitachi Semiconductor)
  • 2SC2310 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

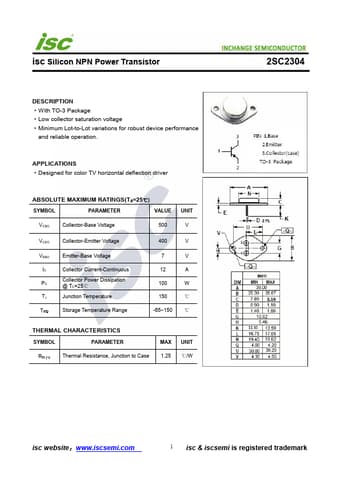

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC2304 DESCRIPTION ·With TO-3 Package ·Low collector saturation voltage ·Minimum Lot-to-Lot variations for robust device performance and reliable operation. APPLICATIONS ·Designed for color TV horizontal deflection driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power Dissipation @ TC=25℃ Junction Temperature Storage Temperature Range 7 V 12 A 100 W 150 ℃ -65~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance, Junction to Case MAX UNIT 1.25 ℃/W isc website：www.iscsemi.
