2SC2333 - NPN Transistor

2SC2333 Description

isc Silicon NPN Power Transistor 2SC2333 .
Collector-Emitter Sustaining Voltage- :VCEO(SUS)= 400V(Min). High Speed Switching. Low Collector Saturation Voltage. Wide Area of Saf.

2SC2333 Applications

* Designed for switching regulator, DC-DC converter and ultrasonic appliance applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Contin

📥 Download Datasheet

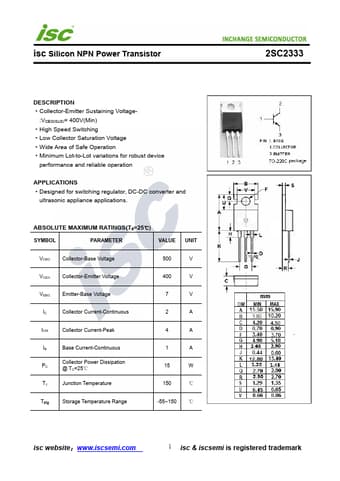

Preview of 2SC2333 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC2333
Manufacturer
INCHANGE
File Size
217.20 KB
Datasheet
2SC2333-INCHANGE.pdf
Description
NPN Transistor
