2SC2320 Datasheet - Mitsubishi

2SC2320 NPN Epitaxial Planar Silicon Transistor

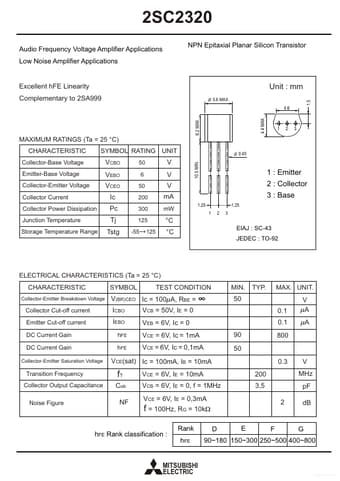

2SC2320 Audio Frequency Voltage Amplifier Applications Low Noise Amplifier Applications NPN Epitaxial Planar Silicon Transistor Excellent hFE Linearity Complementary to 2SA999 6.2 MAX. 5.6 MAX. Unit : mm 4.6 4.4 MAX. 1.5 1 2 3 0.45 10.5 MIN. MAXIMUM RATINGS (Ta = 25 °C) CHARACTERISTIC Collector-Base Voltage Emitter-Base Voltage Collector-Emitter Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range SYMBOL RATING UNIT VCBO VEBO VCEO Ic Pc Tj Tst.

2SC2320_Mitsubishi.pdf

Preview of 2SC2320 PDF
2SC2320 Datasheet Preview Page 2

Datasheet Details

Part number:

2SC2320

Manufacturer:

Mitsubishi

File Size:

282.68 KB

Description:

Npn epitaxial planar silicon transistor.
