2SC2626 - NPN Transistor

2SC2626 Description

isc Silicon NPN Power Transistor 2SC2626 .
High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min). High Switching Speed. High Reliability. Minimum Lot-to-Lot variation.

2SC2626 Applications

* Switching regulators
* Ultrasonic generators
* High frequency inverters
* General purpose power amplifiers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 400 V VCEO Collector-Emitter Voltage 300 V VCEO(SUS) Collector-Emitter Volta

📥 Download Datasheet

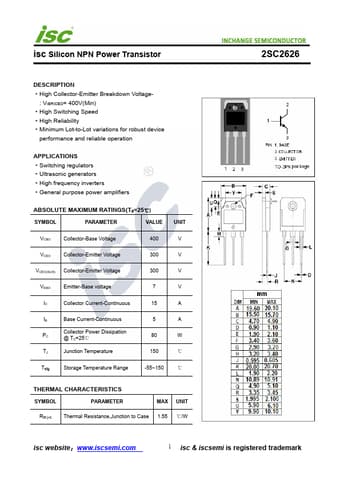

Preview of 2SC2626 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2626
Manufacturer
INCHANGE
File Size
209.67 KB
Datasheet
2SC2626-INCHANGE.pdf
Description
NPN Transistor
