2SC2616 - NPN Transistor

2SC2616 Description

isc Silicon NPN Power Transistor .
High Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 400V (Min). High Switching Speed. Minimum Lot-to-Lot variations for robust device.

2SC2616 Applications

* Designed for high voltage, high speed and high power switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER MAX UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous 10 A

📥 Download Datasheet

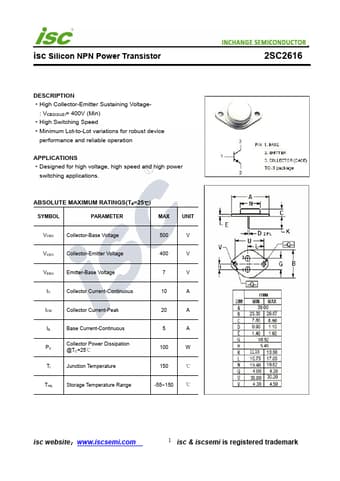

Preview of 2SC2616 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2616
Manufacturer
INCHANGE
File Size
183.99 KB
Datasheet
2SC2616-INCHANGE.pdf
Description
NPN Transistor
