2SC2650 Silicon NPN Power Transistor

2SC2650 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 400V(Min). High Switching Speed. Wide Area of Safe Operation. Minimum Lot-to-Lot var.

2SC2650 Applications

* Switching regulator applicaition.
* High voltage switching application.
* High speed DC-DC converter application. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7

📥 Download Datasheet

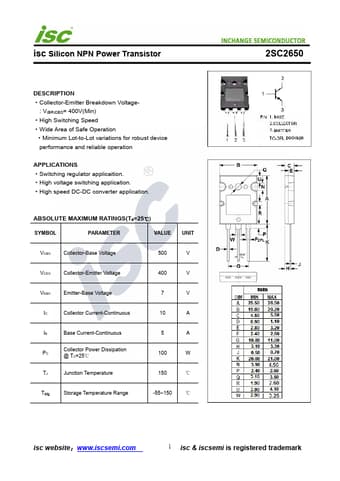

Preview of 2SC2650 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC2650
Manufacturer
INCHANGE
File Size
211.10 KB
Datasheet
2SC2650-INCHANGE.pdf
Description
Silicon NPN Power Transistor
