Part number:
2SC2621
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
906.87 KB
Description:
Silicon npn transistor.

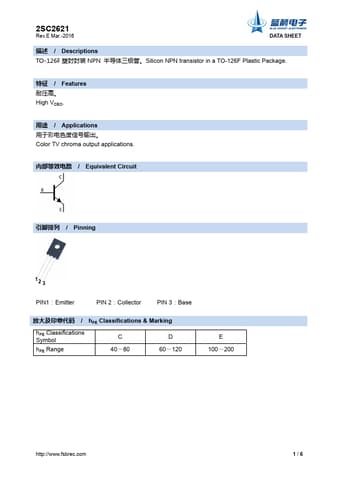

* 。 High VCEO. / Applications 。 Color TV chroma output applications. / Equivalent Circuit / Pinning 12 3 PIN1：Emitter PIN 2：Collector PIN 3：Base / hFE Classifications & Marking hFE Classifications Symbol hFE Range C 40～80 D 60～120 E 100～200 http://www.fsbrec.com 1/6 2SC2621 Rev.
2SC2621
BLUE ROCKET ELECTRONICS
906.87 KB
Silicon npn transistor.
