2SC3679B

Silicon NPN Transistor

2SC3679B Features

* High-speed switching High collector to base voltage VCBO Satisfactory linearity of foward current transfer ratio hFE TO-3P package which can be installed to the heat sink with one screw 5.45±0.1 B C E +0.2 1.05 -0.1 5.45±0.1 +0.2 0.65 -0.1 1.4 C 1 2 3 B APPLICATIONS Switching regulator and g

2SC3679B Datasheet (250.48 KB)

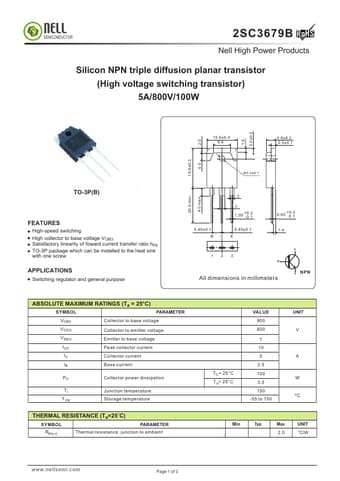

Preview of 2SC3679B PDF

Datasheet Details

Part number:

2SC3679B

Manufacturer:

NELL SEMICONDUCTOR

File Size:

250.48 KB

Description:

Silicon npn transistor.
SEMICONDUCTOR 2SC3679B Silicon NPN triple diffusion planar transistor (High voltage switching transistor) 5A/800V/100W RoHS RoHS Nell High Power Pr.
