2SC3679 Datasheet - Sanken electric

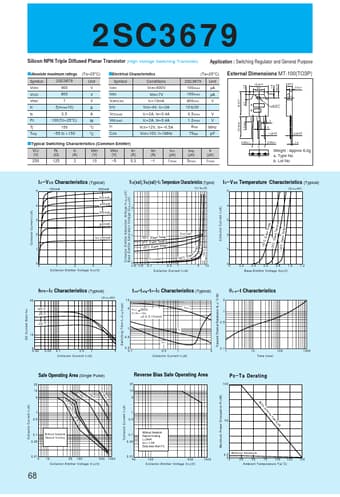

2SC3679 Silicon NPN Transistor

2SC3679 Silicon NPN Triple Diffused Planar Transistor (High Voltage Switching Transistor) sAbsolute maximum ratings Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC3679 900 800 7 5(Pulse10) 2.5 100(Tc=25°C) 150 55 to +150 (Ta=25°C) Unit V V V A A W °C °C Application : Switching Regulator and General Purpose (Ta=25°C) sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=800V VEB=7V IC=10mA VCE=4V, IC=2A IC=2A, IB=0.4A IC=2A, IB=0.4A VCE=12V, IE=

2SC3679_Sankenelectric.pdf
