2SC3284 Datasheet - Sanken electric

2SC3284 Silicon NPN Transistor

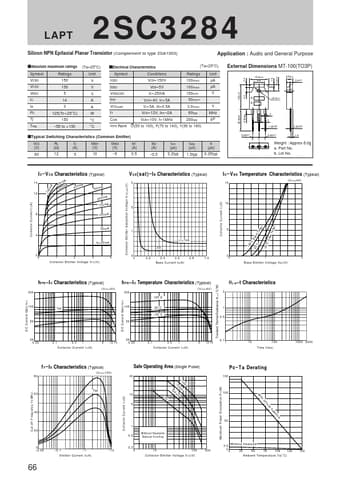

LAPT 2SC3284 Silicon NPN Epitaxial Planar Transistor (Complement to type 2SA1303) Application : Audio and General Purpose sAbsolute maximum ratings Symbol Ratings VCBO 150 VCEO 150 VEBO IC IB PC Tj Tstg 5 14 3 125(Tc=25°C) 150 55 to +150 (Ta=25°C) Unit V V V A A W °C °C sElectrical Characteristics (Ta=25°C) Symbol Conditions Ratings Unit ICBO IEBO V(BR)CEO VCB=150V VEB=5V IC=25mA 100max µA 100max µA 150min V hFE VCE(sat) fT COB VCE=4V, IC=5A IC=5A, IB=0.5A VCE.
