2SC3179 - Silicon NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SC3179

Datasheet Details

Part number 2SC3179
Manufacturer Sanken electric
File Size 22.63 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC3179 Datasheet
Additional preview pages of the 2SC3179 datasheet.

📁 Similar Datasheet

  • 2SC3179 - NPN Transistor (INCHANGE)
  • 2SC3179 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3170 - NPN Transistor (INCHANGE)
  • 2SC3170 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3171 - NPN Transistor (INCHANGE)
  • 2SC3171 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3172 - Silicon NPN Transistor (Toshiba)
  • 2SC3173 - NPN Transistor (Sanyo Semicon Device)
  • 2SC3174 - NPN Epitaxial Planar Silicon Transistor (Sanyo Semicon Device)
  • 2SC3175 - NPN Transistor (INCHANGE)
Other Datasheets by Sanken electric

Full PDF Text Transcription

Click to expand full text

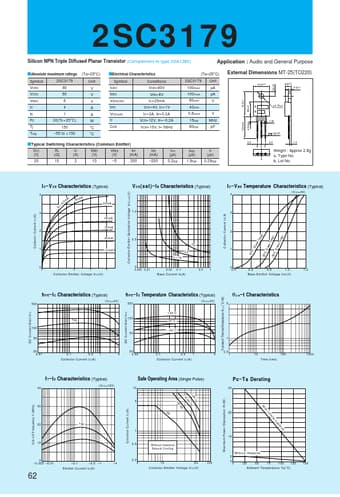

2SC3179 Silicon NPN Triple Diffused Planar Transistor (Complement to type 2SA1262) sAbsolute maximum ratings (Ta=25°C) Symbol VCBO VCEO VEBO IC IB PC Tj Tstg 2SC3179 80 60 6 4 1 30(Tc=25°C) 150 –55 to +150 Unit V V V A A W °C °C 2.5 B C E Application : Audio and General Purpose (Ta=25°C) sElectrical Characteristics Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) fT COB Conditions VCB=80V VEB=6V IC=25mA VCE=4V, IC=1V IC=2A, IB=0.2A VCE=12V, IE=–0.2A VCB=10V, f=1MHz 100max 100max 60min 40min 0.6max 15typ 60typ External Dimensions MT-25(TO220) 3.0±0.2 10.2±0.2 4.8±0.2 2.0±0.1 2SC3179 Unit µA µA V V pF 12.0min 16.0±0.7 8.8±0.2 a b ø3.75±0.2 4.0max MHz 1.35 0.65 +0.2 -0.1 2.5 1.
