2SC3263 - Silicon NPN Transistor

Datasheet Summary

Description

The 2SC3263 is an NPN transistor of 230 V, 15 A.

The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds.

Features

  • Complementary to 2SA1294.
  • LAPT (Linear Amplifier Power Transistor).
  • High Transition Frequency.
  • Bare Lead Frame: Pb-free (RoHS Compliant).
  • VCEO--------------------------------------------------- 230 V.
  • IC --------------------------------------------------------15 A.
  • fT-----------------------------------------------------60 MHz.
  • PC ----------------------------------------------------- 130 W.

📥 Download Datasheet

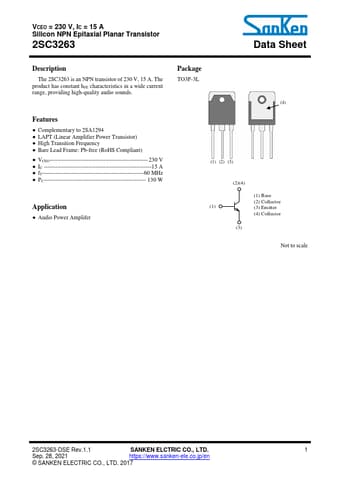

Datasheet preview – 2SC3263

Datasheet Details

Part number 2SC3263
Manufacturer Sanken electric
File Size 285.85 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC3263 Datasheet
Additional preview pages of the 2SC3263 datasheet.

📁 Similar Datasheet

  • 2SC3263 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3263 - NPN Transistor (INCHANGE)
  • 2SC3264 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3264 - NPN Transistor (INCHANGE)
  • 2SC3265 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC3265 - Silicon NPN Transistor (Guangdong Kexin Industrial)
  • 2SC3265-O - NPN Amplifier (MCC)
  • 2SC3265-Y - NPN Amplifier (MCC)
  • 2SC3266 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC3267 - Silicon NPN TRANSISTOR (Toshiba Semiconductor)
Other Datasheets by Sanken electric

Full PDF Text Transcription

Click to expand full text
VCEO = 230 V, IC = 15 A Silicon NPN Epitaxial Planar Transistor 2SC3263 Data Sheet Description The 2SC3263 is an NPN transistor of 230 V, 15 A. The product has constant hFE characteristics in a wide current range, providing high-quality audio sounds.
