2SC3677 - NPN Transistor

2SC3677 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SC3677 .
Low Collector Saturation Voltage. High breakdown voltage. Good Linearity of hFE. 100% avalanche tested. Minimum Lot-to-Lot variat.

2SC3677 Applications

* High voltage amplifier
* High-voltage switching applications
* Dynamis focus applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 5 V IC Collector Current

📥 Download Datasheet

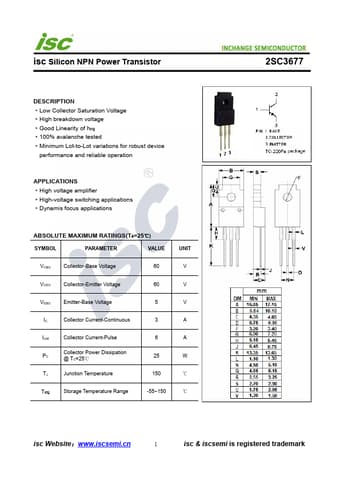

Preview of 2SC3677 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC3677
Manufacturer
INCHANGE
File Size
181.68 KB
Datasheet
2SC3677-INCHANGE.pdf
Description
NPN Transistor
