2SC3632

NPN Transistor

2SC3632 General Description


*High Collector-Emitter Voltage
*Low collector saturation voltage
*100% avalanche tested
*Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS
*High voltage switching. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT V.

2SC3632 Datasheet (200.74 KB)

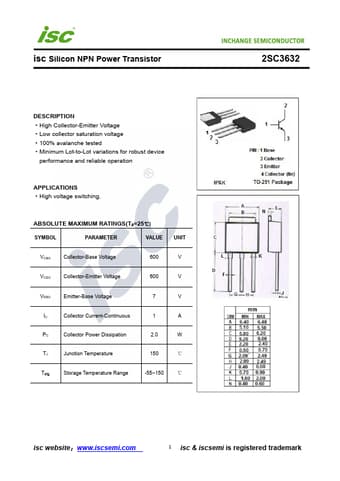

Preview of 2SC3632 PDF

Datasheet Details

Part number:

2SC3632

Manufacturer:

INCHANGE

File Size:

200.74 KB

Description:

Npn transistor.
