2SC3600 - PNP/NPN Epitaxial Planar Silicon Transistors

2SC3600 Description

Ordering number:ENN1765B PNP/NPN Epitaxial Planar Silicon Transistors 2SA1406/2SC3600 Ultrahigh-Definition CRT Display Video Output Applications App.

2SC3600 Features

* High fT : fT typ=400MHz.
* High breakdown voltage : VCEO≥200V.
* Small reverse transfer capacitance and excellent HF response : Cre=1.4pF (NPN), 1.7pF (PNP).
* Complementary PNP and NPN types.
* Adoption of FBET process. ( ) : 2SA1406 Specifications 1.5 3.0 7.0 11.0 1.6 0.8 0

2SC3600 Applications

* Applications
* Ultrahigh-definition CRT display.
* Video output.
* Color TV chroma output.

📥 Download Datasheet

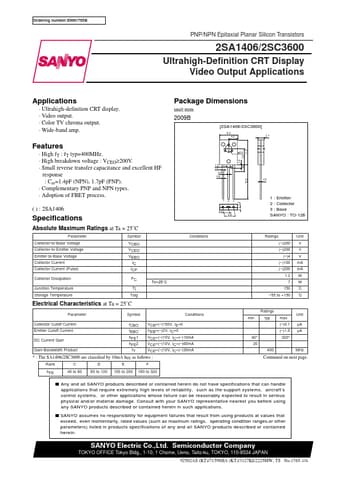

Preview of 2SC3600 PDF
